A Modern Pin-Tail for Everyone
- Delivered in 2-5 working days
- Supports 1% for the planet
- 2 year warranty
Personality
The Details

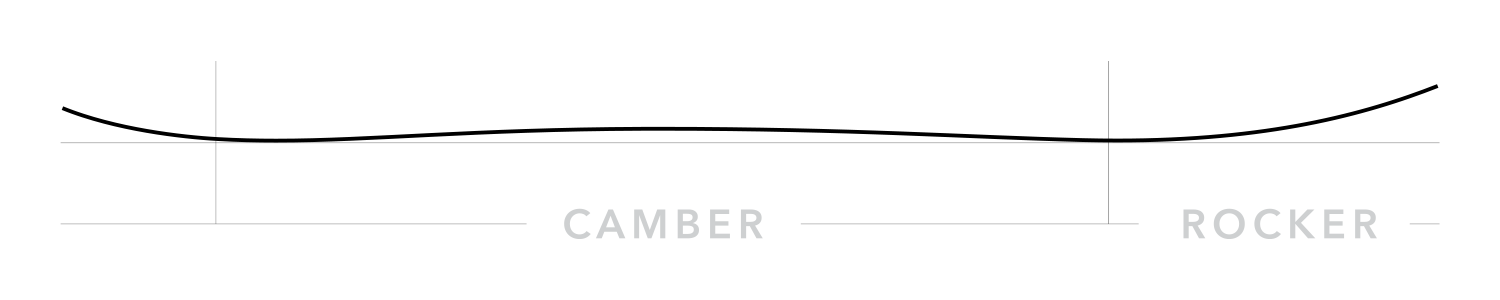

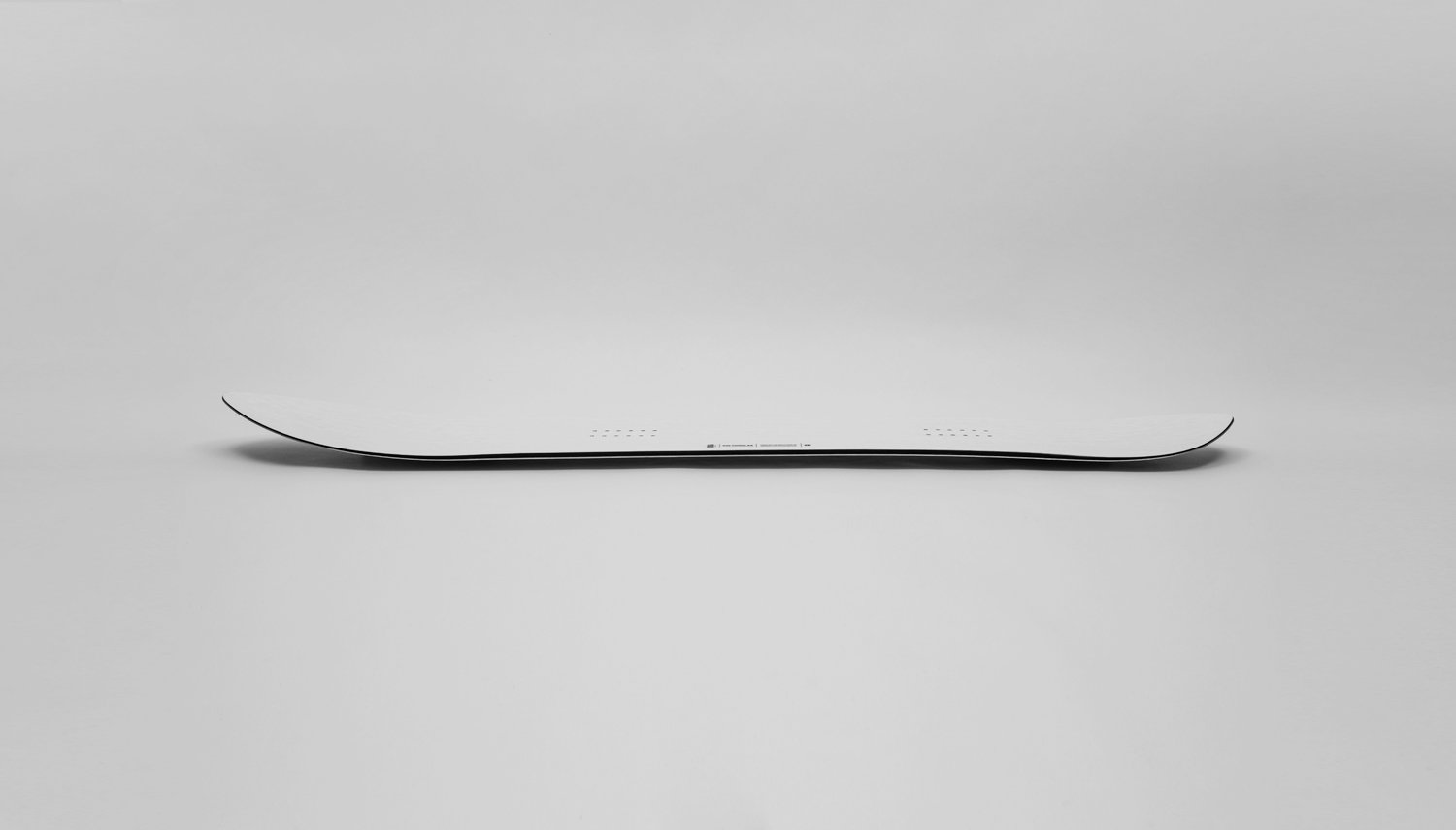

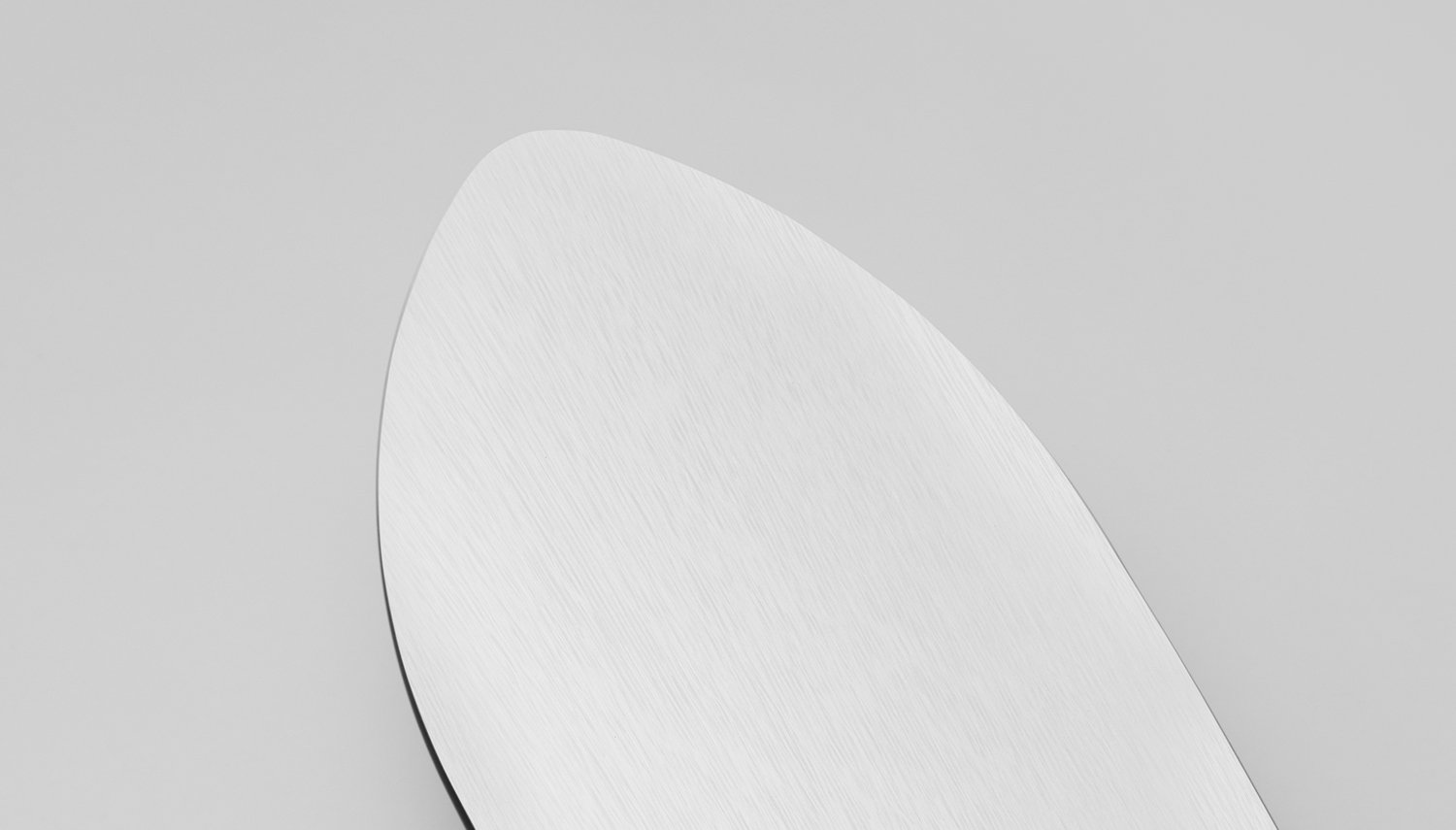

The Pin Tonic features our FLOAT CAMBER, which curves into a rocker shape in the nose. This profile helps you stay on top in deep powder while maintaining speed throughout the turn. The camber under-foot offers grip and stability on hard-pack and in variable conditions, while the early rise in the nose allows for an easy initiation of turns.

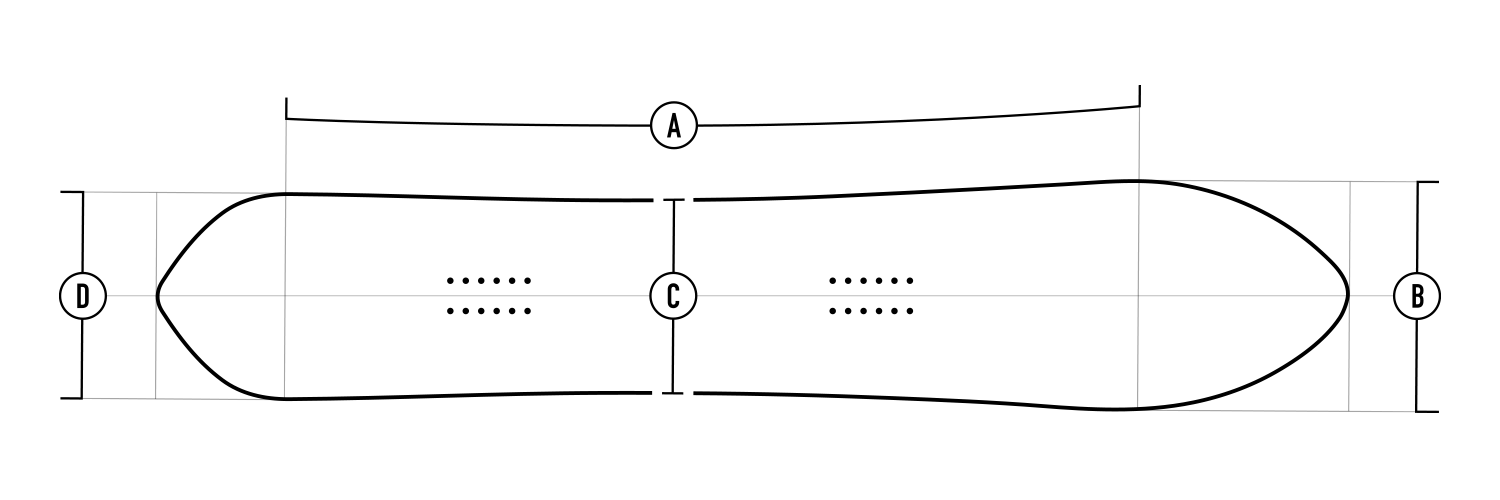

| Length (cm) | 164 | 172 |
| Effective Edge (mm) *A* | 1200 | 1260 |
| Running Length (mm) | 1060 | 1120 |
| Nose Width (mm) *B* | 324 | 332 |
| Waist Width (mm) *C* | 269 | 276 |
| Tail Width (mm) *D* | 293 | 303 |
| Avg. Sidecut Radius (m) | 8.2 | 8.6 |
| Setback (mm) | 20 | 20 |
| Taper (mm) | 31 | 28 |
| Recommended Stance (cm) | 55 | 55 |
| Adjust. Stance Range (cm) | 49-61 | 49-61 |
| Board Weight (kg) | 2.9 | 3.1 |
| Switch Riding | No Problem | No Problem |
ddBiaxial fiberglass, UV laquer topsheet, poplar light wood core and a high-end perlatec base is the tried-and-tested combination of our durable materials we use to enable that perfect turn.
This chart shows the range in what each size can handle. It is never our intention to categorize riders and their preferences. Our philosophy of snowboarding is to try new shapes, lengths, widths, and to keep an open mind for alternative riding experiences; however, we do have some limits to consider so that your board will work as it was designed to.
Your weight plays a major role in how the board will flex, and your shoe size will affect toe and heel drag when turning. The below size chart is for reference only, as our recommendations may vary depending on your stance and riding ability.
Pin Tonic
| Size (cm) | Max Boot Size (EU) | Max Boot Sole Length (cm) | Rider Weight Range (kg) | Max Rider Height (cm) |
| 164 | 46 | 31.4 cm | 60 - 95 kg | 195 cm |
| 172 | 49 | 32.3 cm | 65 - 95 kg | 195+ cm |
Rider References
Lino Sleegers – Pin Tonic 164,
Height & Weight: 175cm, 71kg
Boot size & Stance: EU 42,5 / US 9, regular, +21 / +9, width 53
Bindings: Union Atlas / Union Expedition
Thomas Stöckli – Pin Tonic 172,
Height & Weight: 171cm, 70kg
Boot size & Stance: EU 43 / US 9 goofy, +27 / +12, width 50cm
Bindings: Union, Flux, Spark
Geoff Brinkhaus – Pin Tonic 172,
Height & Weight: 189cm, 82kg
Boot size & Stance: EU 44,5 / US 11, regular, +24 / +3, width 55
Bindings: Union Strata
